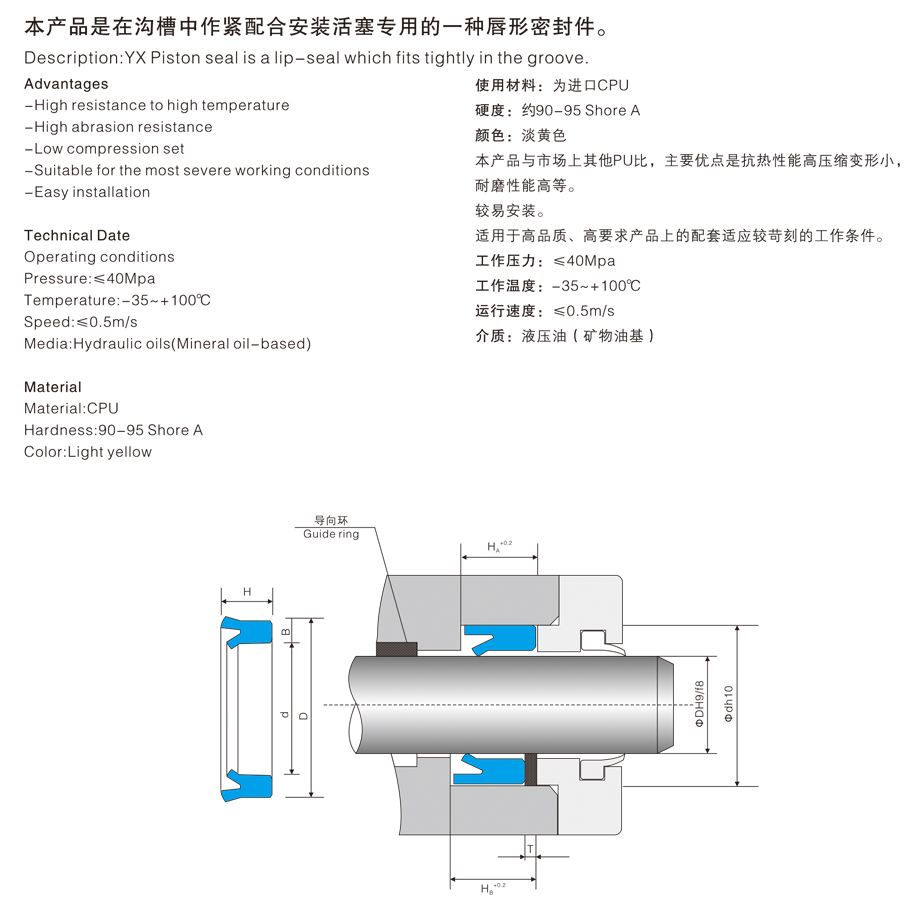

产品 编号 |
密封件公称尺寸 |
内腔尺寸 |
|||||||
|
d |
D |
B |
H |
Φd |
ΦD |
HA+ 0.2 |
HB+ 0.2 |
T |
|
|
IDU8 |
8 |
14 |
3 |
8 |
8 |
14 |
9 |
10.5 |
1.5 |
|
IDU10 |
10 |
16 |
3 |
8 |
10 |
16 |
9 |
10.5 |
1.5 |
|
IDU12 |
12 |
18 |
3 |
8 |
12 |
18 |
9 |
10.5 |
1.5 |
|
IDU14 |
14 |
20 |
3 |
8 |
14 |
20 |
9 |
10.5 |
1.5 |
|
IDU16 |
16 |
22 |
3 |
8 |
16 |
22 |
9 |
10.5 |
1.5 |
|
IDU16 |
16 |
24 |
3 |
10 |
16 |
24 |
9 |
10.5 |
1.5 |
|
IDU18 |
18 |
24 |
3 |
8 |
18 |
24 |
9 |
10.5 |
1.5 |
|
IDU18 |
18 |
26 |
4 |
8 |
18 |
26 |
9 |
10.5 |
1.5 |
|
IDU18 |
18 |
26 |
4 |
10 |
18 |
26 |
11 |
12.5 |
1.5 |
|
IDU20 |
20 |
26 |
3 |
8 |
20 |
26 |
9 |
10.5 |
1.5 |
|
IDU20 |
20 |
28 |
4 |
10 |
20 |
28 |
11 |
12.5 |
1.5 |
|
IDU22 |
22 |
28 |
3 |
8 |
22 |
28 |
9 |
10.5 |
1.5 |
|
IDU22 |
22 |
30 |
4 |
10 |
22 |
30 |
11 |
12.5 |
1.5 |
|
IDU25 |
25 |
31 |
3 |
8 |
25 |
31 |
9 |
10.5 |
1.5 |
|
IDU25 |
25 |
33 |
4 |
10 |
25 |
33 |
11 |
12.5 |
1.5 |
|
IDU28 |
28 |
34 |
3 |
8 |
28 |
34 |
9 |
10.5 |
1.5 |
|
IDU28 |
28 |
36 |
4 |
8 |
28 |
36 |
9 |
10.5 |
1.5 |
|
IDU28 |
28 |
36 |
4 |
10 |
28 |
36 |
11 |
12.5 |
1.5 |
|
IDU30 |
30 |
38 |
4 |
8 |
30 |
38 |
9 |
10.5 |
1.5 |
|
IDU30 |
30 |
38 |
4 |
10 |
30 |
38 |
11 |
12.5 |
1.5 |
|
IDU32 |
32 |
40 |
4 |
10 |
32 |
40 |
11 |
12.5 |
1.5 |
|
IDU35 |
35 |
43 |
4 |
10 |
35 |
43 |
11 |
12.5 |
1.5 |
|
IDU36 |
36 |
44 |
4 |
10 |
36 |
44 |
11 |
12.5 |
1.5 |
|
IDU40 |
40 |
48 |
4 |
10 |
40 |
48 |
11 |
12.5 |
1.5 |
|
IDU45 |
45 |
53 |
4 |
10 |
45 |
53 |
11 |
12.5 |
1.5 |
|
IDU50 |
50 |
58 |
4 |
10 |
50 |
58 |
11 |
12.5 |
1.5 |
|
IDU52 |
52 |
60 |
4 |
10 |
52 |
60 |
11 |
12.5 |
1.5 |
|
IDU55 |
55 |
63 |
4 |
10 |
55 |
63 |
11 |
12.5 |
1.5 |
|
IDU55 |
55 |
67 |
6 |
14 |
55 |
67 |
15 |
17 |
2 |
|
IDU56 |
56 |
64 |
4 |
10 |
56 |
64 |
11 |
12.5 |
1.5 |
|
IDU60 |
60 |
72 |
6 |
14 |
60 |
72 |
15 |
17 |
2 |
|
IDU63 |
63 |
75 |
6 |
14 |
63 |
75 |
15 |
17 |
2 |
|
IDU65 |
65 |
77 |
6 |
14 |
65 |
77 |
15 |
17 |
2 |
|
IDU70 |
70 |
82 |
6 |
14 |
70 |
82 |
15 |
17 |
2 |
|
IDU75 |
75 |
87 |
6 |
14 |
75 |
87 |
15 |
17 |
2 |
|
IDU80 |
80 |
92 |
6 |
14 |
80 |
92 |
15 |
17 |
2 |
|
IDU85 |
85 |
97 |
6 |
14 |
85 |
97 |
15 |
17 |
2 |
|
IDU90 |
90 |
102 |
6 |
14 |
90 |
102 |
15 |
17 |
2 |
|
IDU95 |
95 |
107 |
6 |
14 |
95 |
107 |
15 |
17 |
2 |
|
IDU100 |
100 |
112 |
6 |
14 |
100 |
112 |
15 |
17 |
2 |
|
IDU105 |
105 |
117 |
6 |
14 |
105 |
117 |
15 |
17 |
2 |
|
IDU105 |
105 |
121 |
8 |
18 |
105 |
121 |
19 |
21.5 |
2.5 |
|
IDU110 |
110 |
122 |
6 |
14 |
110 |
122 |
15 |
17 |
2 |
|
IDU110 |
110 |
126 |
8 |
18 |
110 |
126 |
19 |
21.5 |
2.5 |
|
IDU115 |
115 |
127 |
6 |
14 |
115 |
127 |
15 |
17 |
2 |
|
IDU115 |
115 |
131 |
8 |
18 |
115 |
131 |
19 |
21.5 |
2.5 |
|
IDU120 |
120 |
132 |
6 |
14 |
120 |
132 |
15 |
17 |
2 |
|
IDU120 |
120 |
136 |
8 |
18 |
120 |
136 |
19 |
21.5 |
2.5 |
|
IDU125 |
125 |
137 |
6 |
14 |
125 |
137 |
15 |
17 |
2 |
|
IDU125 |
125 |
141 |
8 |
18 |
125 |
141 |
19 |
21.5 |
2.5 |
|
IDU130 |
130 |
142 |
6 |
14 |
130 |
142 |
15 |
17 |
2 |
|
IDU130 |
130 |
146 |
8 |
18 |
130 |
146 |
19 |
21.5 |
2.5 |
|
IDU135 |
135 |
147 |
6 |
14 |
135 |
147 |
15 |
17 |
2 |
|
IDU135 |
135 |
151 |
6 |
14 |
135 |
151 |
15 |
17 |
2 |
|
IDU140 |
140 |
152 |
6 |
14 |
140 |
152 |
15 |
17 |
2 |
|
IDU140 |
140 |
156 |
6 |
14 |
140 |
156 |
15 |
17 |
2 |
|
IDU145 |
145 |
157 |
6 |
14 |
145 |
157 |
15 |
17 |
2 |
|
IDU145 |
145 |
161 |
8 |
18 |
145 |
161 |
19 |
21.5 |
2.5 |
|
IDU150 |
150 |
162 |
6 |
14 |
150 |
162 |
15 |
17 |
2 |
|
IDU150 |
150 |
166 |
8 |
18 |
150 |
166 |
19 |
21.5 |
2.5 |
|
IDU155 |
155 |
167 |
6 |
14 |
155 |
167 |
15 |
17 |
2 |
|
IDU155 |
155 |
171 |
8 |
18 |
155 |
171 |
19 |
21.5 |
2.5 |
|
IDU160 |
160 |
172 |
6 |
14 |
160 |
172 |
15 |
17 |
2 |
|
IDU160 |
160 |
176 |
8 |
18 |
160 |
176 |
19 |
21.5 |
2.5 |
|
IDU163 |
163 |
175 |
6 |
14 |
163 |
175 |
15 |
17 |
2 |
|
IDU165 |
165 |
181 |
8 |
18 |
165 |
181 |
19 |
21.5 |
2.5 |
|
IDU170 |
170 |
186 |
8 |
18 |
170 |
186 |
19 |
21.5 |
2.5 |
|
IDU175 |
175 |
191 |
8 |
18 |
175 |
191 |
19 |
21.5 |
2.5 |
|
IDU180 |
180 |
196 |
8 |
18 |
180 |
196 |
19 |
21.5 |
2.5 |
|
IDU185 |
185 |
201 |
8 |
18 |
185 |
201 |
19 |
21.5 |
2.5 |
|
IDU190 |
190 |
206 |
8 |
18 |
190 |
206 |
19 |
21.5 |
2.5 |
|
IDU195 |
195 |
211 |
8 |
18 |
195 |
211 |
19 |
21.5 |
2.5 |
|
IDU200 |
200 |
216 |
8 |
18 |
200 |
216 |
19 |
21.5 |
2.5 |
|
IDU205 |
205 |
221 |
8 |
18 |
205 |
221 |
19 |
21.5 |
2.5 |
|
IDU210 |
210 |
226 |
8 |
18 |
210 |
226 |
19 |
21.5 |
2.5 |
|
IDU215 |
215 |
231 |
8 |
18 |
215 |
231 |
19 |
21.5 |
2.5 |
|
IDU220 |
220 |
236 |
8 |
18 |
220 |
236 |
19 |
21.5 |
2.5 |
|
IDU225 |
225 |
241 |
8 |
18 |
225 |
241 |
19 |
21.5 |
2.5 |
|
IDU230 |
230 |
246 |
8 |
18 |
230 |
246 |
19 |
21.5 |
2.5 |
|
IDU235 |
235 |
251 |
8 |
18 |
235 |
251 |
19 |
21.5 |
2.5 |
|
IDU240 |
240 |
256 |
8 |
18 |
240 |
256 |
19 |
21.5 |
2.5 |
|
IDU250 |
250 |
266 |
8 |
18 |
250 |
266 |
19 |
21.5 |
2.5 |
|
IDU260 |
260 |
276 |
8 |
18 |
260 |
276 |
19 |
21.5 |
2.5 |
|
IDU265 |
265 |
281 |
8 |
18 |
265 |
281 |
19 |
21.5 |
2.5 |
|
IDU270 |
270 |
286 |
8 |
18 |
270 |
286 |
19 |
21.5 |
2.5 |
|
IDU280 |
280 |
296 |
8 |
18 |
280 |
296 |
19 |
21.5 |
2.5 |
|
IDU290 |
290 |
306 |
8 |
18 |
290 |
306 |
19 |
21.5 |
2.5 |
|
IDU300 |
300 |
316 |
8 |
18 |
300 |
316 |
19 |
21.5 |
2.5 |
